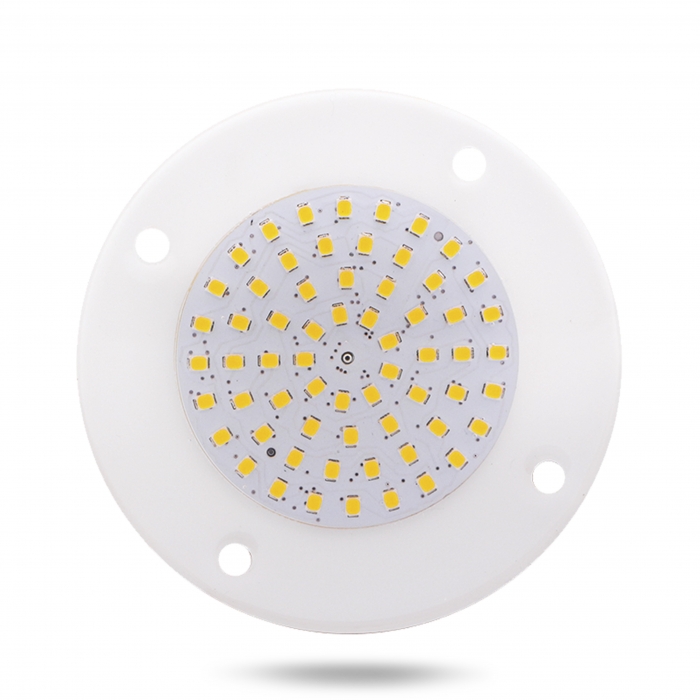

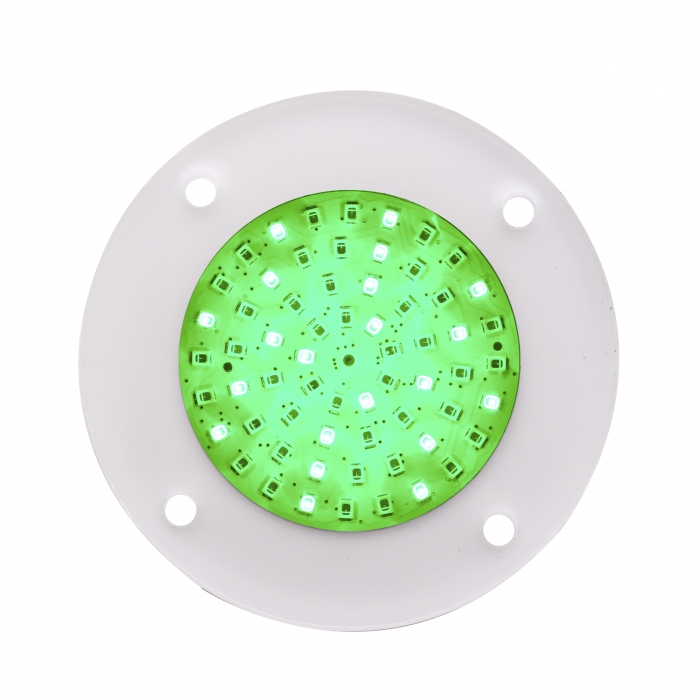

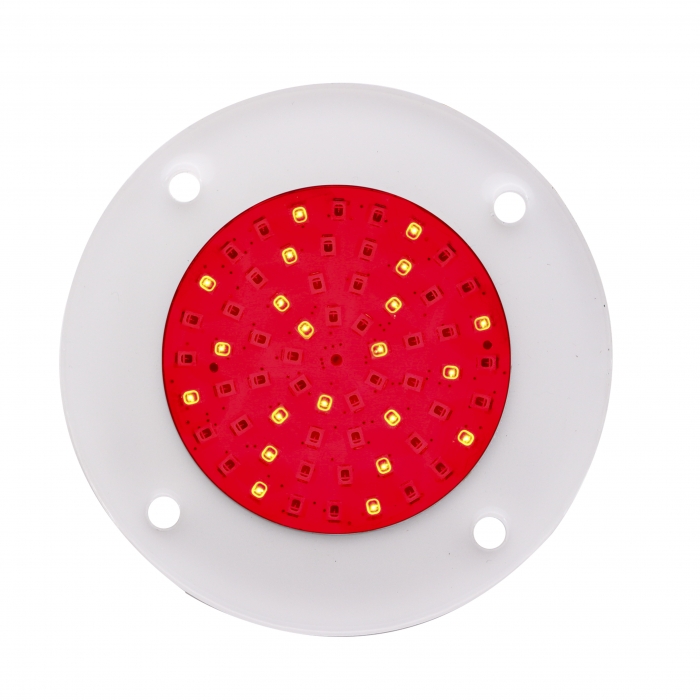

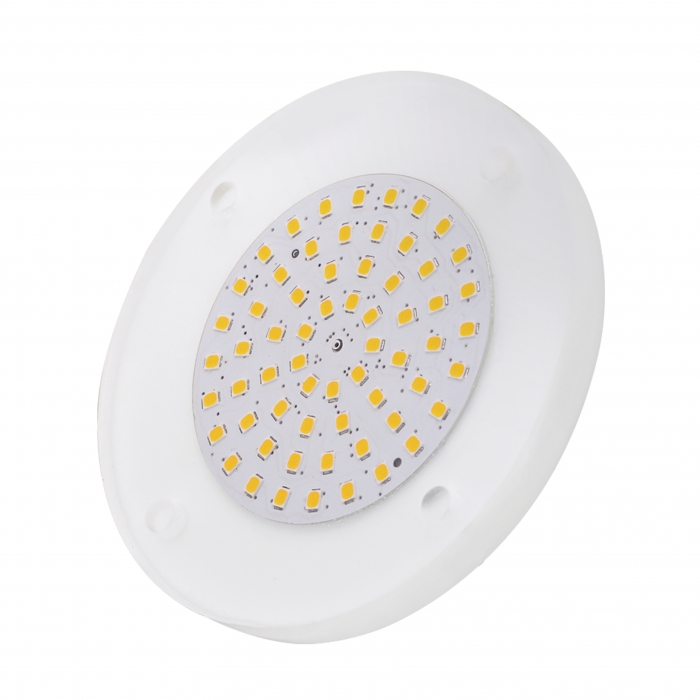

DC12V 100x10mm soft flexible Ultra thin 10mm Resin Filled LED Pool Light

  • DC12V 100x10mm soft flexible Ultra thin 10mm Resin Filled LED Pool Light
Name:DC12V 100x10mm soft flexible Ultra thin 10mm Resin Filled LED Pool Light
Model No.:FG-FX100-63R
Size:100x10mm
Voltage:DC12V
Material:Soft resin filled
LED Col:RGB,Red, Yellow, Blue, Green, Cool white, Warm white
LED qty:63pcs
LED power:6W
LED Brand:Epistar
Beam angle:120degree
Regular cable length:2meters
Waterproof Grade:IP68
RGB control DC12V:WiFI Control, External Control, DMX512 Control

Product Description


图层 2.jpg



ModelProduct
    Code		LED Qty             (PCS)Input
    Power		Input
    Voltage		Emitting ColorBeam
    angle		MaterialDimension    (MM)
Round shapeFG-PL100-63R63PCS8WDC12V

Warm White; White;              Cool White; Yellow ;

 Red ;              Green;

Blue ;

    RGB		120°Soft resin filled100*10mm
FG-PL178-144R144PCS
    SMD2835		12W178*10mm
FG-PL178-252R252PCS
    SMD2835		18W
FG-PL260-252R252PCS
    SMD2835		18W260*10mm
FG-PL260-333R333PCS
    SMD2835		24W
FG-PL260-441R441PCS
    SMD2835		35W
FG-PL260-630R630PCS
    SMD2835		42W

Remarks：1. RGB Mode: External Control only

               2. Normal length of the wire: 2meter

               3. SMD 3014 optional

               4. Installation Method: Wall mounted

图层 7.jpg

图层 4.jpg

图层 8.jpg图层 9.jpg

图层 5.jpg图层 6.jpg
