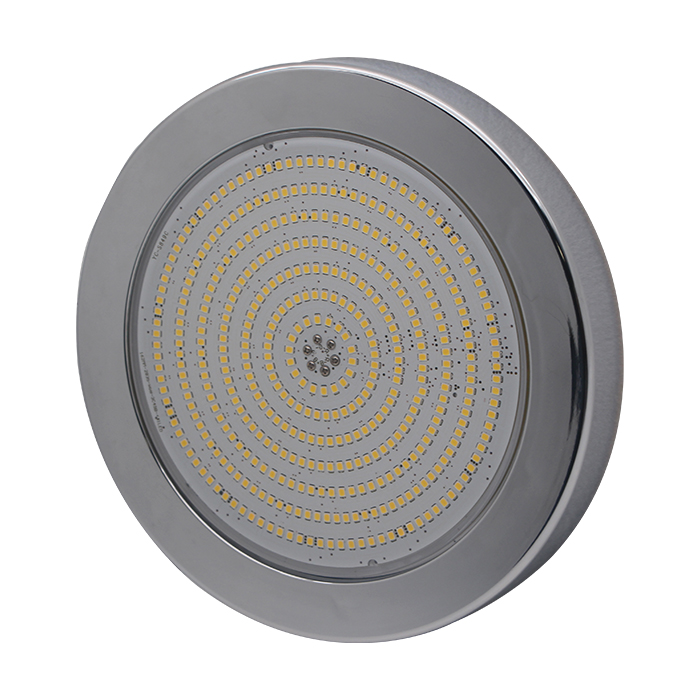

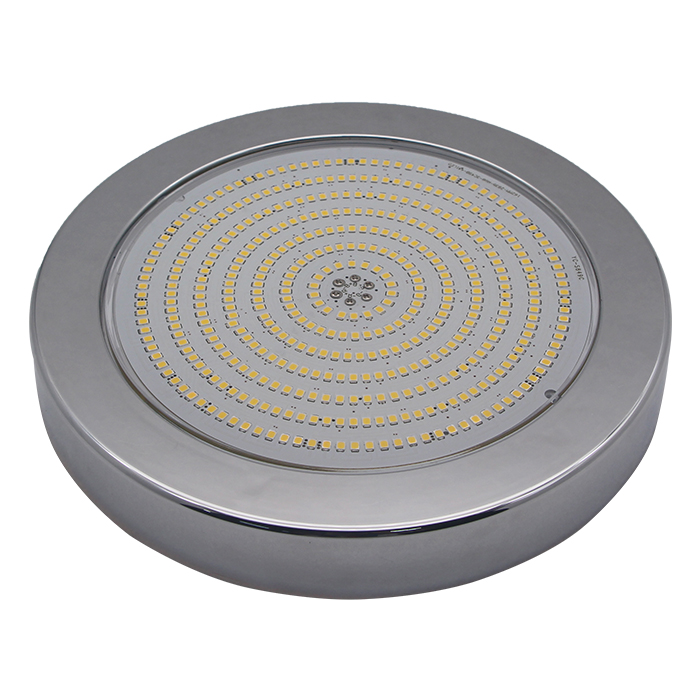

220x30mm PC resin filled Surface mounted LED pool light (Silver color)

  • 220x30mm PC resin filled Surface mounted LED pool light (Silver color)
Name:220x30mm PC resin filled Surface mounted LED pool light (Silver color)
Model No:FG-PL220-252PC/333PC/441PC/531PC/630PCS

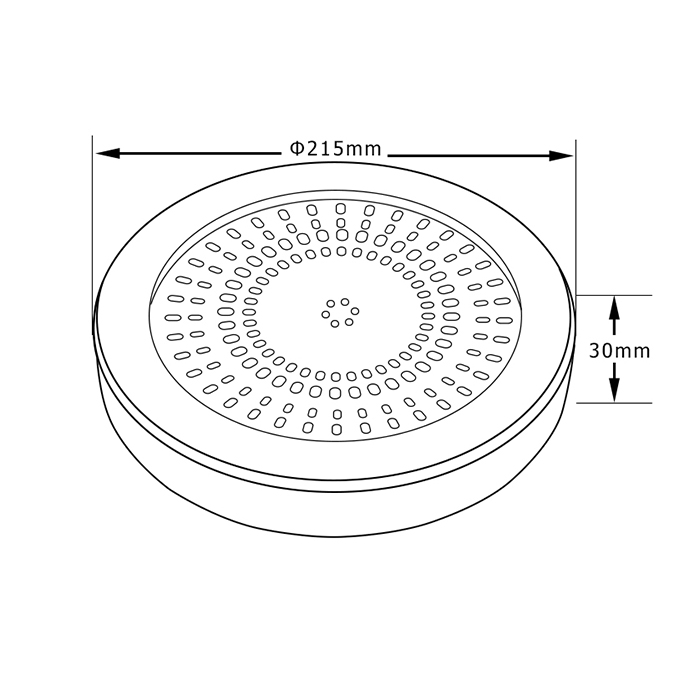

Size:220x30mm
Material:PC
LED qty:252pc 333pc 441pcs 531pcs 630pcs
LED type:2835SMD
LED Brand:Epistar
LED Power:18W 24W 30W 35W 42W
LED Color:Single color, RGB Color
Single Color:Red,Yellow, Blue, Green, Cool white, Neutral white, Warm white
Waterproof Grade:IP68
Beam angle:12degree
RGB DC12V Model:External Control, WiFi Control, DMX512 Control
RGB AC12V Model:Inner Control, Switch Control, Remote Control

Product Description

图层 2.jpg




Model   No.LED Qty  Input
Power

Input

Voltage

Emitting ColorBeam
 angle
MaterialDimension    (MM)
FG-PL220-252PC

252  pcs

 SMD2835

18WAC/DC12V   Warm White

     White

       Cool White

   Yellow
   Red
   Green
    Blue
    RGB
 120°PC220*30MM
FG-PL220-333PC

333pcs

SMD2835

24W
FG-PL220-441PC

441pcs

 SMD2835

30W
FG-PL220-531PC

531pcs

 SMD2835

35W
FG-PL220-630PC

630 pcs

 SMD2835

42W


Remarks:

1. RGB Mode: Switch control, Inner control,  External Control, DMX512 Control, Remote control

2. Normal length of the wire: 2meter 2Wires for Single color, Switch Controll, Inner Control; 4 wires for external/DMX Control)

3. Installation Method: Wall mounted

 4. SMD 3014 LED is optional



图层 7.jpg

图层 4.jpg


图层 9.jpg

图层 8.jpg

图层 5.jpg


Application:

图层 6.jpg
