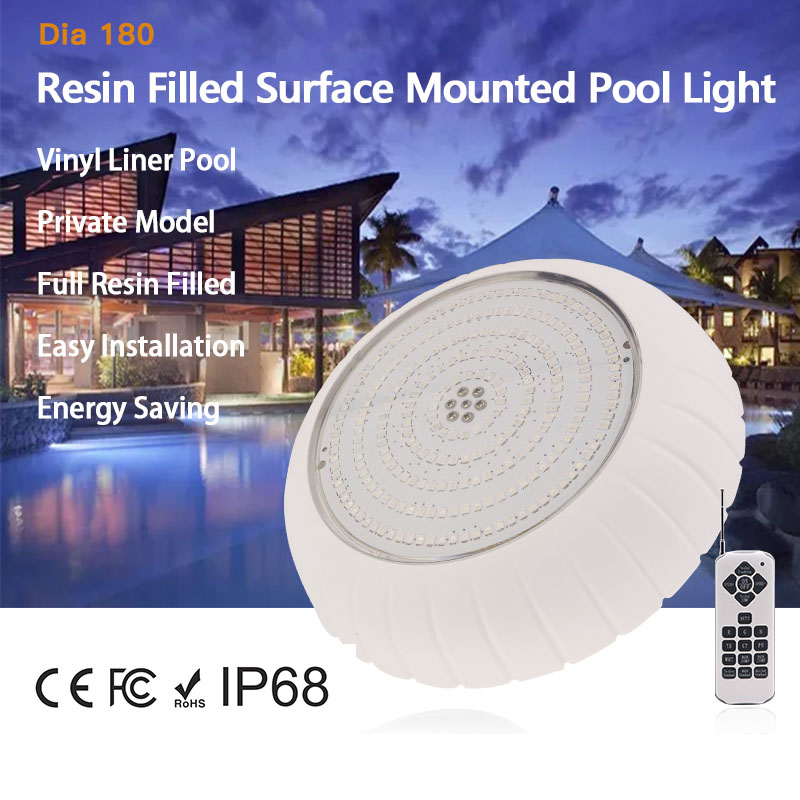

180x38mm PC 10W 12W 18W resin filled led pool light (pumpkin type)

  • 180x38mm PC 10W 12W  18W resin filled led pool light (pumpkin type)
Name:180x38mm PC 10W 12W 18W resin filled led pool light (pumpkin type)
Model No.:FG-UWL180-N
Size:180x38mm
Voltage:AC12V
Material:PC
LED Brand:Epistar
LED qty:108pcs/144pcs/252pcs
LED power:10W/12W/18W
Beam angle:120degree
Waterproof Grade:IP68
Regular cable length:2meters
LED Color:RGB Red Yellow Blue Green Cool White Warm white
RGB control AC12V:Inner Control, Switch Control, Remote Control

Product Description



Specification:


Model No.

LED Qty

 (PCS)

Input
Power
Input
   Voltage
Emitting ColorBeam
 angle
MaterialDimension    (MM)
FG-UWL180-108P
108
    SMD2835
10WAC/DC12V

Warm White White            Cool White

Yellow

Red

Green

Blue

RGB
 120°PC180*38MM
FG-UWL180-144P144pcs
    SMD2835
12W
FG-UWL180-252P252pcs
    SMD2835
18W

Remarks:1. RGB Mode: Switch control, Inner control,  External Control, DMX512 Control, Remote control

                  2. Normal length of the wire: 2meter 2Wires for Single color, Switch Controll, Inner Control; 4 wires for external/DMX Control)

                   3. Installation Method: Wall mounted

                   4. SMD 3014 LED is optional





Installation:
