260x40mm PC Resin filled LED Surface Mounted Pool light with 2year warranty

Contact Us

Mobile:+86-13710354529
Tel:+86-20-86867249
Fax:+86-20-86867249
QQ:223582051
Email:eileen@futuregreenlite.com
Skype:futuregreenlighting
Add:No. 52, Furong Avenue, Huadu District,Guangzhou, 510800 China
WhatsApp:+86-13710354529 (Ms. Eileen Liao)

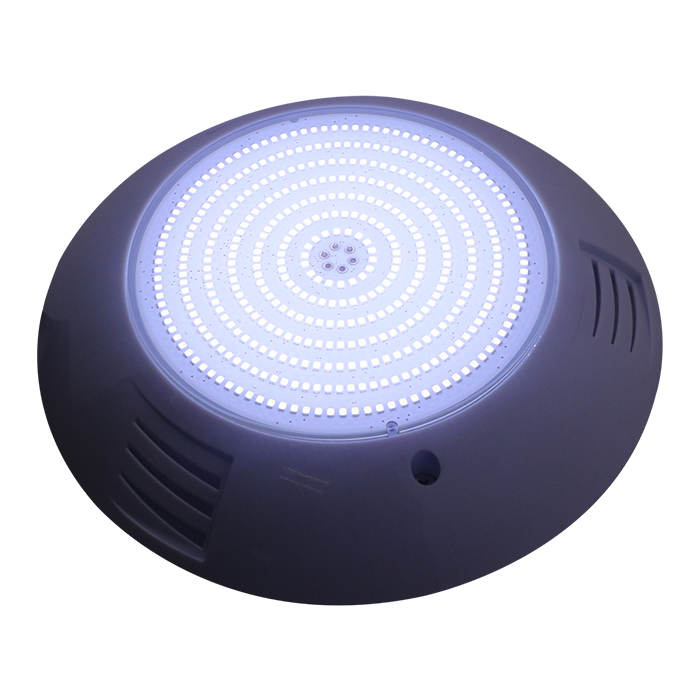

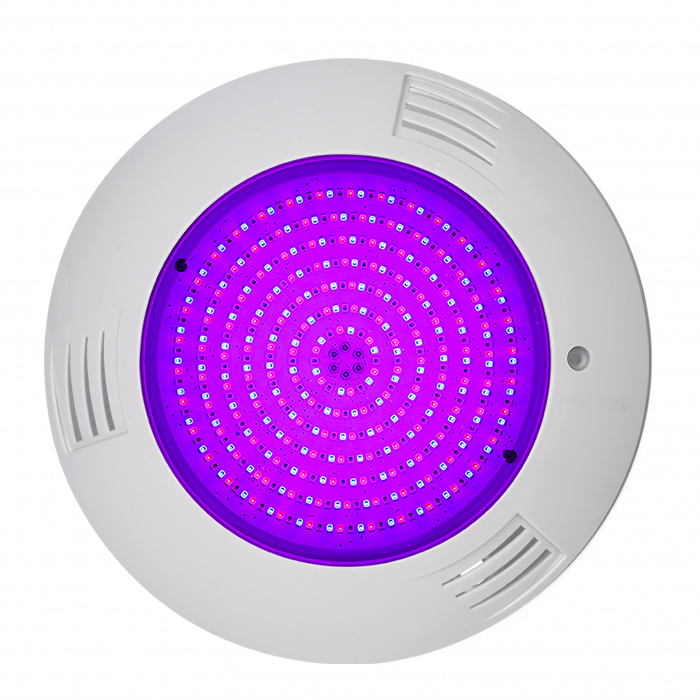

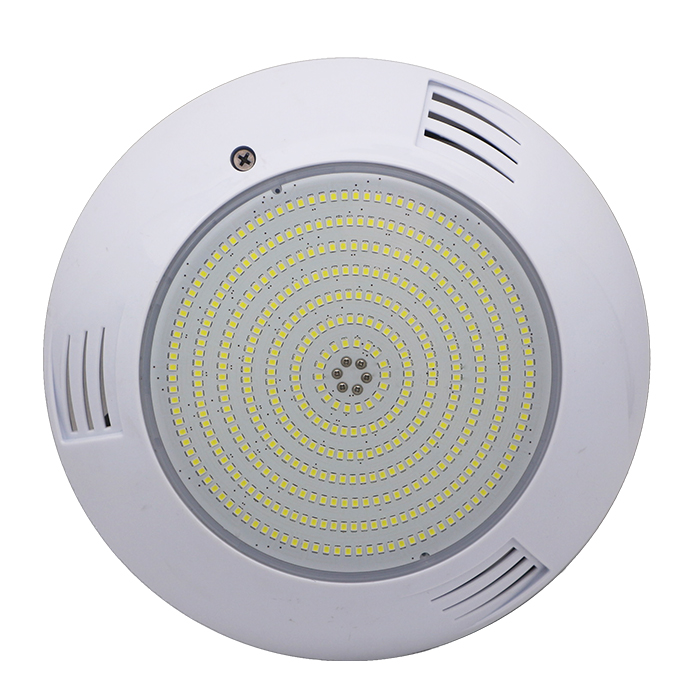

260x40mm PC Resin filled LED Surface Mounted Pool light with 2year warranty

Name:	260x40mm PC Resin filled LED Surface Mounted Pool light with 2year warranty
Model No:	FG-UWL260-C
Size:	260x40.5mm
Material:	PC
LED qty:	252pcs 333pcs 444pcs 531pcs 630pcs
LED type:	2835SMD
LED Brand:	Epistar
LED Color:	Single color， RGB Color
LED Power:	18W 24W 30W 35W 42W
Single Color:	Red,Yellow, Blue, Green, Cool white, Neutral white, Warm white
Waterproof Grade:	IP68
Beam angle:	120degree
RGB DC12V Model:	External Control, WiFi Control, DMX512 Control
RGB AC12V Model:	Inner Control, Switch Control, Remote Control

Product Description

COMPETITIVE ADVANTAGE

1.High quality PC material

2.Resin filled bulb,100% waterproof

3.Easy Installation

Details:

1. Material: PC
2. Voltage: AC/DC 12V-24V
3. Power: 18W, 24W,30W,35W,42W

4. LED QTY: 252PCS,331PCS,441PCS,531pcs,630pcs

5. LED Brand: Epistar

6. Color: RGB/Red/Yellow/Blue/Green/Cool white/Warm White

7. Warranty: 2years

8. Size: 260*40mm

Voltage details:
Single color: R/Y/B/G/CW/WW (AC/DC12V)
RGB Remote controlled (Inner, on/off and remote in 1 lamp) (AC12V)
RGB on/off controlled 2wire (AC12V)
DMX512 Controlled 4wires (DC12v)
External controlled 4wires (DC12V)
RGB 2wires PLC controlled (AC12V)

Model no	Voltage	Power	LED Qty	LED Type	Warranty Year	Diameter	Packing
FG-UWL260-252P	AC12V/DC12V	18W	252pcs	SMD2835/SMD3014	2 Years	260*40mm	10PCS/CTNS
FG-UWL260-333P	AC12V/DC12V	24W	333pcs	SMD2835/SMD3014	2 Years	260*40mm	10PCS/CTNS
FG-UWL260-441P	AC12V/DC12V	30W	441pcs	SMD2835/SMD3014	2 Years	260*40mm	10PCS/CTNS
FG-UWL260-531P	AC12V/DC12V	35W	531pcs	SMD2835/SMD3014	2 Years	260*40mm	10PCS/CTNS
FG-UWL260-630P	AC12V/DC12V	42W	630pcs	SMD2835/SMD3014	2 Years	260*40mm	10PCS/CTNS

5kind of shell optional:

RF Switch Control connecting diagram:

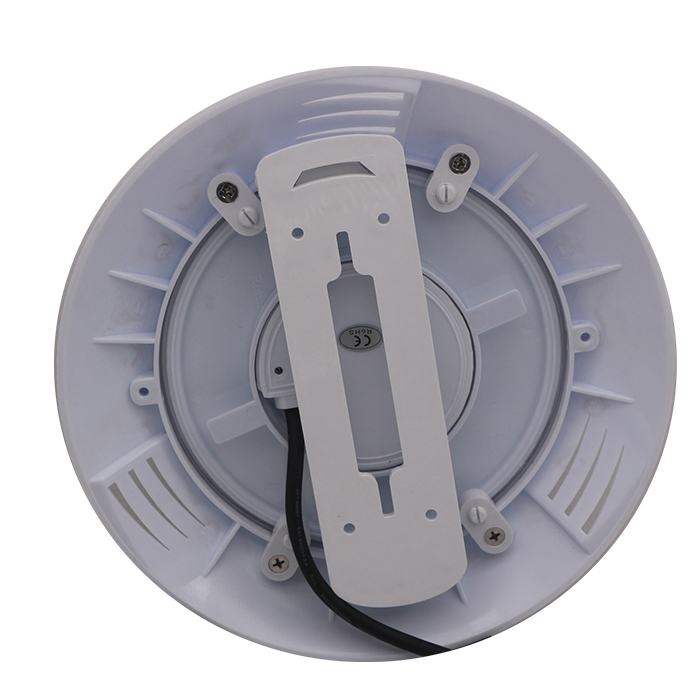

Installation:

Application:
1.Swimming Pool/ Underwater/ Fountain Use
2.The RGB led underwater light are suitable for all decoration use, such as in swimming pool, underwater, fountain use etc.
3.Underground/ Stadium/ Square/ Park
4.The ideal RGB led underwater light for anywhere that needs good effect of brightness lighting for outside use, such as underground, square, park etc.
