130x15mm 6W 10W DC12V PC resin filled led pool light

  • 130x15mm 6W 10W DC12V PC resin filled led pool light
Name:130x15mm 6W 10W DC12V PC resin filled led pool light
Model No:FG-PL130-72PC/108PC-1
Size:130x15mm
Material:PC
LED qty:72pc/108pc
LED type:2835SMD
LED Brand:Epistar
LED Color:Single color, RGB Color
LED Power:6W 10W

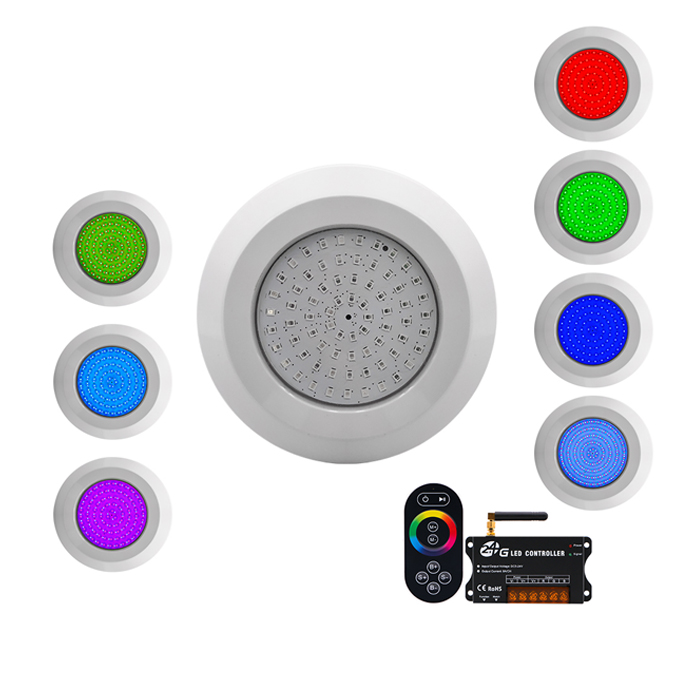

RGB DC12V Model:External Control, WiFi Control, DMX512 Control
Waterproof Grade:IP68
Beam angle:120degree

Product Description


FG-PL130-72PC/108PC


FG-PL130-72PC/108PC-1


FG-PL130-72PC/108PC-2






Model NoLED QtyLED Power VoltageLED ColorBeam
    angle
MaterialSize
FG-PL130-72PC72
    SMD2835
6WDC12VWarm White White              Cool White Yellow              Red               Green               Blue
RGB
 120°PC130*15MM
FG-PL130-108PC108
    SMD2835
10W
FG-PL130-72PC-172
    SMD2835
6WDC12V 120°PC130*15MM
FG-PL130-108PC-1108
    SMD2835
10W
FG-PL130-72PC-272
    SMD2835
6WDC12V 120°PC130*10MM
FG-PL130-108PC-2108
    SMD2835
10W


Remarks:1. RGB Mode: External Control

                   2. Normal length of the wire: 2meter     4 wires for external control

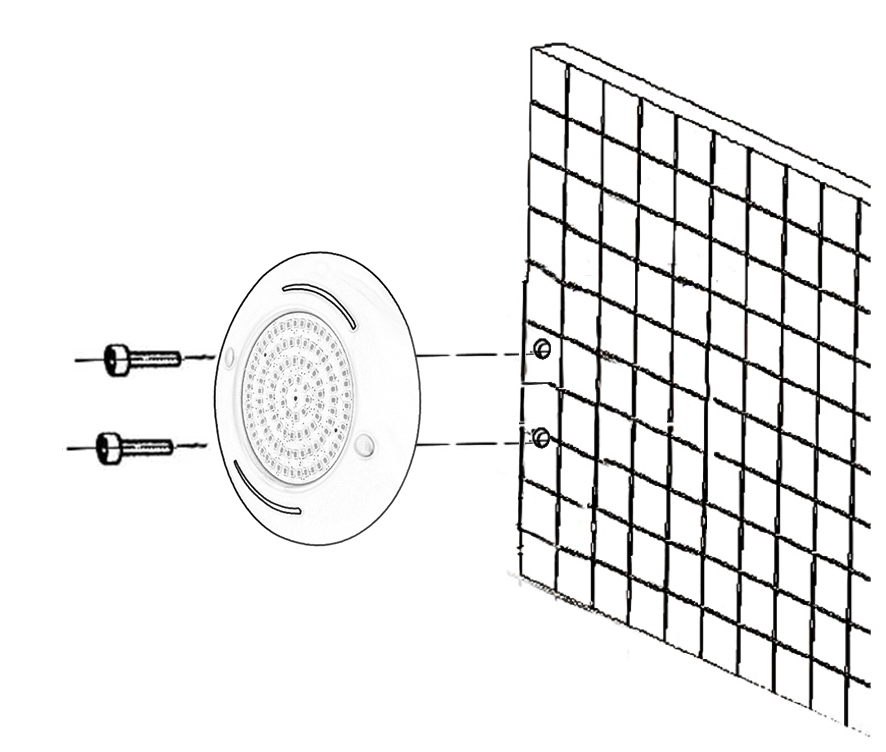

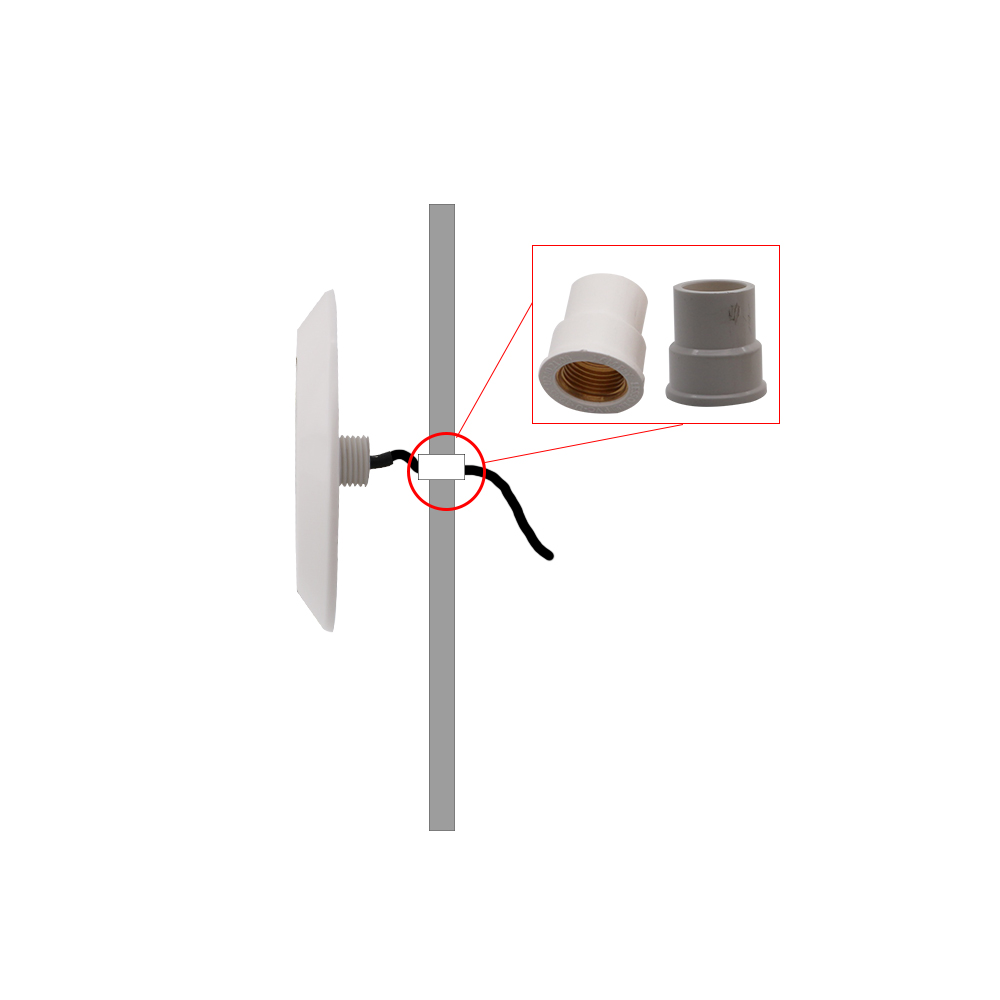

                   3. Installation Method: Wall mounted, Wall recessed


Installation:
