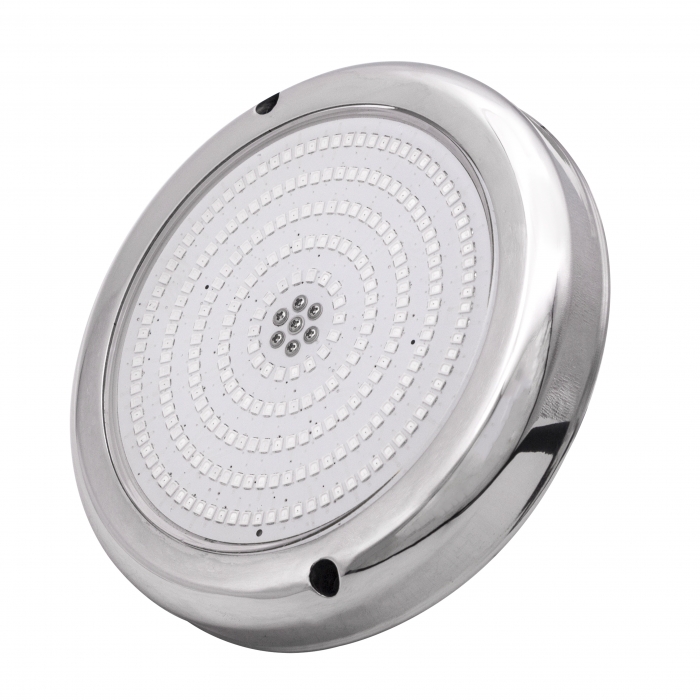

150x25mm 10W 12W 18W 316SS resin filled led pool light

  • 150x25mm 10W 12W 18W 316SS resin filled led pool light
Name:150x25mm 10W 12W 18W 316SS resin filled led pool light
Model No.:FG-UWL150-108S/144S/252S
Size:150x25mm
Voltage:AC12V
Material:316SS
LED Brand:Epistar
LED qty:108pcs/144pcs/252pcs
LED power:10W/12W/18W
Beam angle:120degree
Waterproof Grade:IP68
Regular cable length:2meters
LED Color:RGB Red Yellow Blue Green Cool White Warm white
RGB control AC12V:Inner Control, Switch Control, Remote Control

Product Description



Specification:


Model No.

LED Qty

 (PCS)

Input
Power		Input
   Voltage		Emitting ColorBeam
 angle		MaterialDimension    (MM)
FG-UWL150-108S
108
    SMD2835		10WAC/DC12V

Warm White White            Cool White

Yellow

Red

Green

Blue

RGB		 120°316SS150*25MM
FG-UWL150-144S144
    SMD2835		12W
FG-UWL150-252S252
    SMD2835		18W

Remarks：1. RGB Mode: Switch control, Inner control,  External Control, DMX512 Control, Remote control

                  2. Normal length of the wire: 2meter 2Wires for Single color, Switch Controll, Inner Control; 4 wires for external/DMX Control)

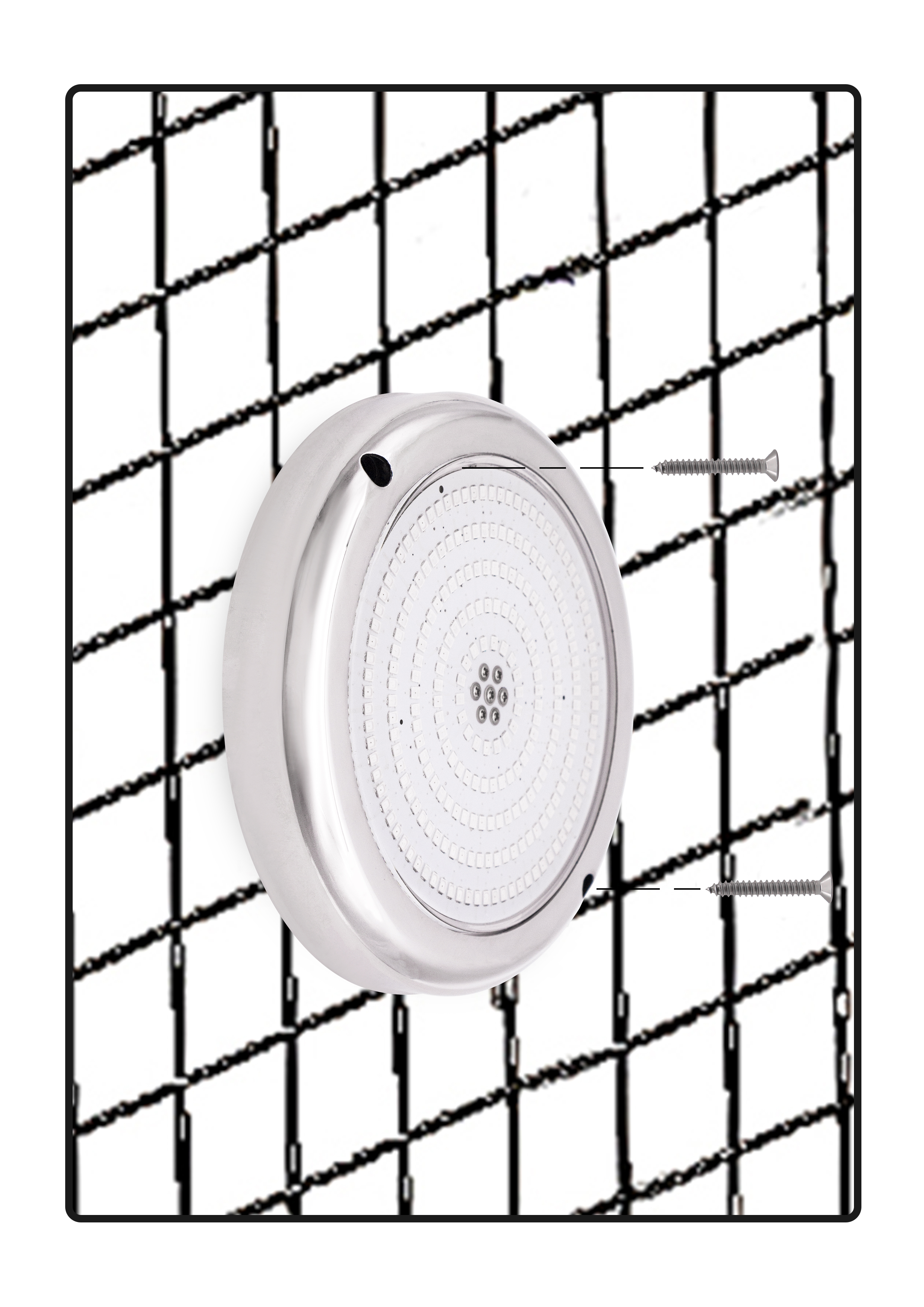

                   3. Installation Method: Wall mounted

                   4. SMD 3014 LED is optional







Installation:
