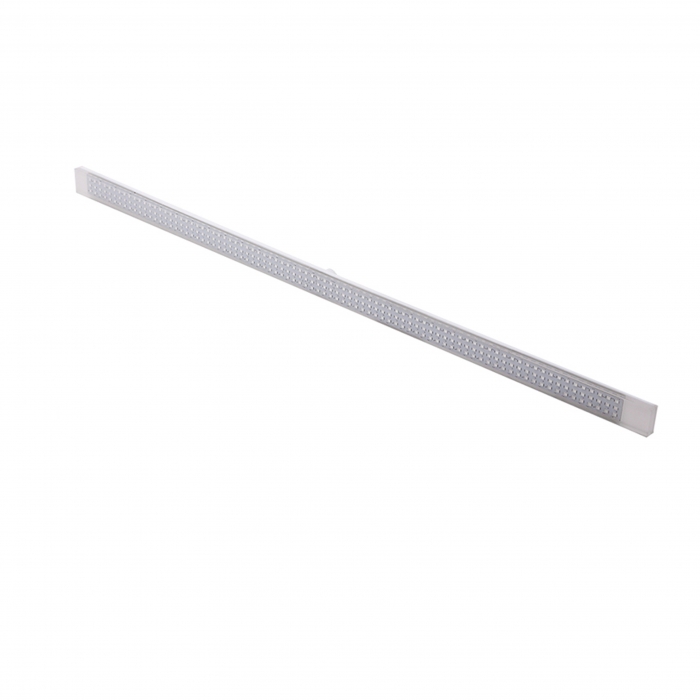

Liner shape 1000mm 35W 40W soft flexible Ultra thin 10mm Resin Filled LED Pool Light

Name:	Liner shape 1000mm 35W 40W soft flexible Ultra thin 10mm Resin Filled LED Pool Light
Model No.:	FG-FX100-4416S/FG-FX100-558S
Size:	1000x25x10MM
Voltage:	DC12V
Material:	Soft resin filled
LED Col:	RGB,Red, Yellow, Blue, Green, Cool white, Warm white
LED qty:	441pcs 558pcs
LED power:	35W 40W
LED Brand:	Epistar
Beam angle:	120degree
Regular cable length:	2meters
Waterproof Grade:	IP68
RGB control DC12V:	WiFI Control, External Control, DMX512 Control

Product Description

Model	Product Code	LED Qty (PCS)	Input Power	Input Voltage	Emitting Color	Beam angle	Material	Dimension (MM)
Liner Shape	FG-PL30-126S	126PCS SMD2835	10W	DC12V	Warm White; White; Cool White; Yellow; Red ; Green; Blue ; RGB	120°	Soft resin filled	3002510MM
	FG-PL30-126S	171PCS SMD2835	15W
	FG-PL60-252S	252PCS SMD2835	18W			120°	Soft resin filled	6002510MM
	FG-PL60-333S	333PCS SMD2835	24W
	FG-PL100-441S	441PCS SMD2835	35W			120°	Soft resin filled	10002510MM
	FG-PL100-558S	558PCS SMD2835	40W

Remarks：1. RGB Mode: External Control only

2. Normal length of the wire: 2meter

3. SMD 3014 optional

4. Installation Method: Wall mounted

图层 7.jpg

图层 4.jpg

图层 8.jpg

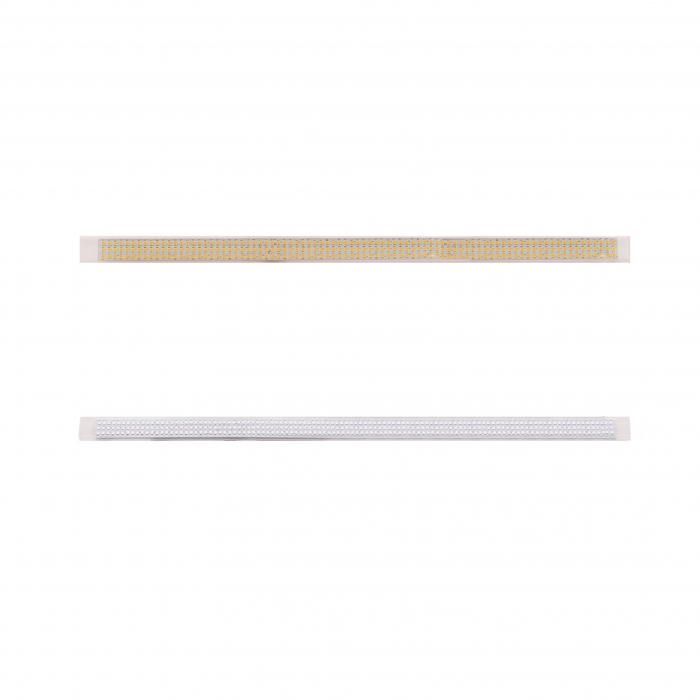

The ready three size availble (Any length can be customized):

Installation:
