Liner shape 600mm 18W 24W soft flexible Ultra thin 10mm Resin Filled LED Pool Light

  • Liner shape 600mm 18W 24W soft flexible Ultra thin 10mm Resin Filled LED Pool Light
Name:Liner shape 600mm 18W 24W soft flexible Ultra thin 10mm Resin Filled LED Pool Light
Model No.:FG-FX60-252S/FG-FX60-333S
Size:600x25x10MM
Voltage:DC12V
Material:Soft resin filled
LED Col:RGB,Red, Yellow, Blue, Green, Cool white, Warm white
LED qty:252pcs 333pcs
LED power:18W 24W
LED Brand:Epistar
Beam angle:120degree
Regular cable length:2meters
Waterproof Grade:IP68
RGB control DC12V:WiFI Control, External Control, DMX512 Control

Product Description





ModelProduct
    Code		LED Qty             (PCS)Input
    Power		Input
    Voltage		Emitting ColorBeam
    angle		MaterialDimension    (MM)





  Liner Shape

FG-PL30-126S126PCS
    SMD2835		10WDC12V

Warm   White; White;              Cool White;   Yellow;

 Red ;              Green;              Blue ;

    RGB		120°Soft   resin filled300*25*10MM
FG-PL30-126S171PCS     SMD283515W
FG-PL60-252S252PCS
    SMD2835		18W120°Soft   resin filled600*25*10MM
FG-PL60-333S333PCS
    SMD2835		24W
FG-PL100-441S441PCS
    SMD2835		35W120°Soft   resin filled1000*25*10MM
FG-PL100-558S558PCS
    SMD2835		40W

Remarks：1. RGB Mode: External Control only

               2. Normal length of the wire: 2meter

               3. SMD 3014 optional

               4. Installation Method: Wall mounted

图层 7.jpg

图层 4.jpg

图层 8.jpg

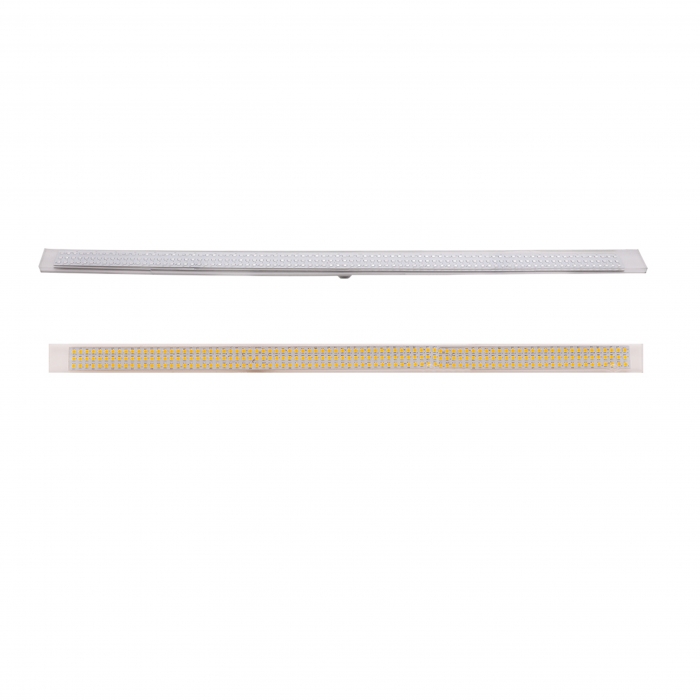

The ready three size availble (Any length can be customized):



Installation:
